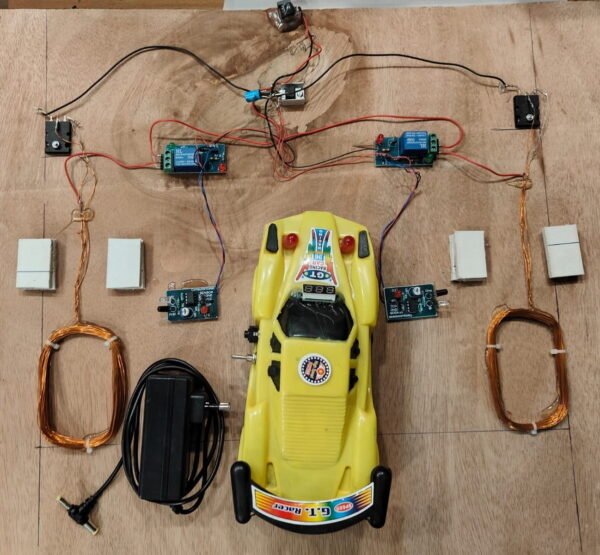

Electric Vehicle Charging Station

Availability:

10 in stock


The Electric Vehicle Charging Station project provides a reliable solution for charging electric vehicles (EVs). It uses a microcontroller to manage the charging process, monitor battery status, and ensure safety. Ideal for residential or commercial use, this system ensures efficient and safe charging of electric vehicles.

Eligible for Free Shipping and COD

4,366.00 6,136.00 (Inc. GST)

10 in stock

BUY MORE, PAY LESS! Add to your cart now and enjoy an extra 10% discount. Wholesale pricing also availableβ€”contact us for B2B bulk deals and special discounts on pre-orders!

Quantity (Order Big, Save Big!)*Your DiscountPrice after discount (Inc. GST)
2 - 910 % OFF3,929.40
10 - 5020 % OFF3,492.80
51 - 10030 % OFF3,056.20

Your Price:

Total Price:

Electric Vehicle Charging Station

Overview

The Electric Vehicle Charging Station project is designed to offer an efficient and reliable solution for charging electric vehicles (EVs). By incorporating a microcontroller and various safety mechanisms, this system ensures that EVs are charged safely and effectively. This project is increasingly relevant as the adoption of electric vehicles grows.

Components

Microcontroller
The microcontroller is the brain of the charging station. It manages the entire charging process, including monitoring the battery status of the EV, controlling the current flow, and ensuring safety protocols are followed. Popular choices for microcontrollers in such applications include Arduino or more advanced options like STM32, depending on the complexity required.

Charging Circuit
The charging circuit regulates the electrical current supplied to the EV. It converts the input voltage to the appropriate levels needed for charging, ensuring that the EV battery is charged efficiently and safely. The circuit includes components such as transformers, rectifiers, and voltage regulators.

Current and Voltage Sensors
Sensors measure the current and voltage during the charging process. These measurements are sent to the microcontroller, which uses them to adjust the charging parameters and ensure that the battery is charged correctly without overcharging.

Safety Mechanisms
Safety is critical in any charging station. The system includes mechanisms such as overcurrent protection, short-circuit detection, and temperature monitoring to prevent accidents and ensure safe operation. Circuit breakers and fuses are commonly used to protect both the vehicle and the charging station.

User Interface
A user interface, such as an LCD display or a smartphone app, provides information about the charging status. It allows users to monitor the progress of the charge, set charging parameters, and receive notifications about the charging process.

Functionality

The charging station operates as follows:

  1. Connection: The EV is connected to the charging station using a standard charging cable.
  2. Initial Check: The microcontroller performs an initial check to ensure that the connection is secure and that all safety parameters are met.
  3. Charging Process: The charging circuit supplies the appropriate current and voltage to the EV battery. The microcontroller monitors and adjusts the charging parameters based on real-time data from sensors.
  4. Completion: Once the battery is fully charged, the microcontroller signals the end of the charging process and disconnects the power. Notifications are sent to the user if applicable.

Applications

This system is suitable for:

  • Residential Use: Charging EVs at home with convenience and safety.
  • Commercial Charging Stations: Providing public charging solutions for EVs.
  • Fleet Management: Charging electric vehicle fleets in businesses and organizations.

Benefits

The Electric Vehicle Charging Station project offers several benefits:

  • Efficiency: Provides reliable and efficient charging for electric vehicles.
  • Safety: Incorporates safety features to prevent accidents and ensure secure operation.
  • User-Friendly: Offers an intuitive interface for monitoring and managing the charging process.
  • Scalability: Can be adapted for different types of EVs and varying power requirements.

Overall, this project provides a comprehensive and practical solution for electric vehicle charging, supporting the transition to cleaner transportation options and enhancing user convenience.
