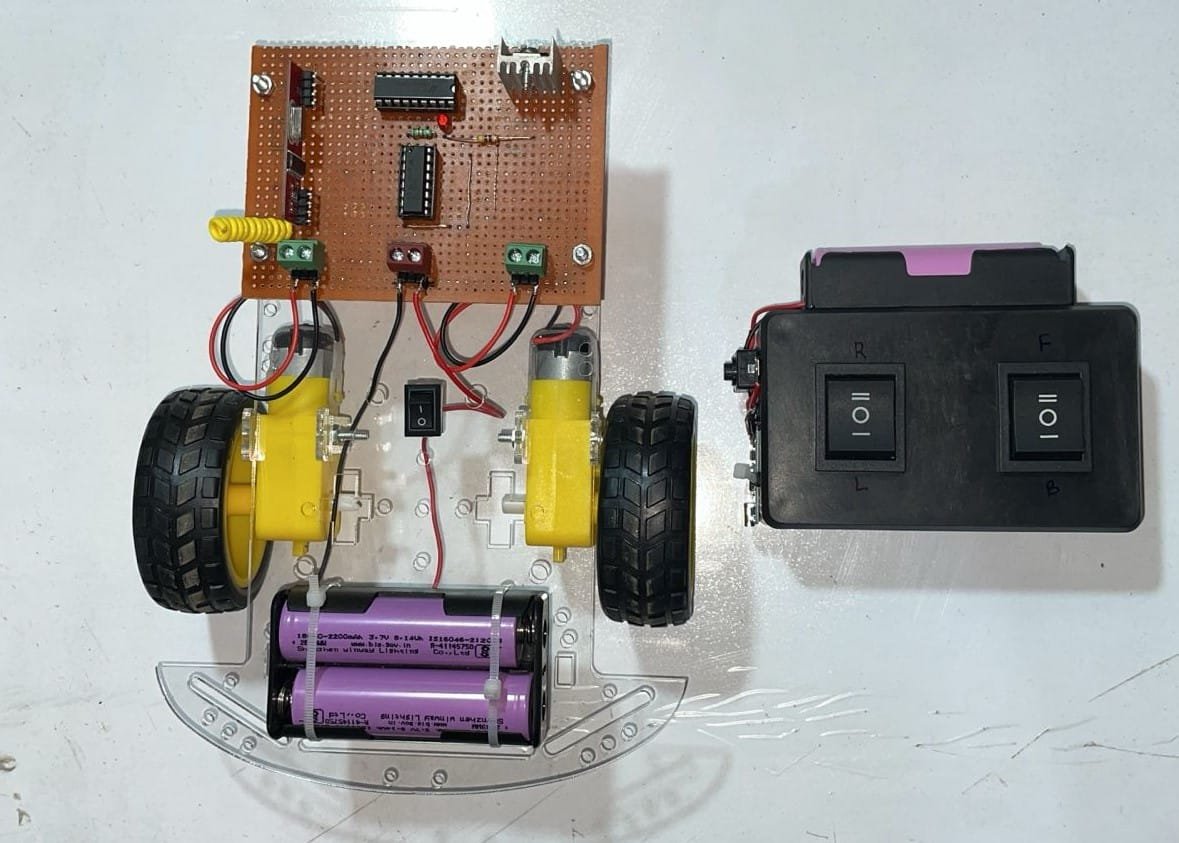

Rf Control Robot using RF Module
RF Controlled Robot Using RF Module
This project demonstrates how to build a wireless RF-controlled robot using an RF transmitter and receiver module without a microcontroller. The robot is controlled via radio frequency (RF) signals, making it a simple yet effective wireless system for applications such as remote monitoring, surveillance, and basic automation.
Components Required:
- RF Transmitter & Receiver Module (433MHz) – Enables wireless communication.
- HT12E (Encoder) & HT12D (Decoder) ICs – Encode and decode the control signals.
- Motor Driver IC (L298N or L293D) – Controls the robot’s motors.
- DC Motors & Wheels – Provide movement in different directions.
- Push Buttons (Remote Control) – Used to send movement commands.
- Battery – Powers the circuit and motors.
Working Principle:
- The user presses buttons on the RF transmitter remote, which sends encoded signals via the HT12E encoder to the RF module.
- The RF receiver module receives these signals and passes them to the HT12D decoder, converting them into a 4-bit digital output.
- The decoded signals are fed into the motor driver IC (L293D or L298N), which controls the motion of the DC motors based on the received commands.
- The robot moves forward, backward, left, or right according to the received signals.
Applications & Benefits:
- Simple & Cost-Effective – No need for a microcontroller, reducing complexity.
- Easy to Build & Modify – Ideal for beginners learning wireless robotics.
- Remote Operation – Useful for wireless control applications like toy cars and basic automation.
Sold By : Computronics Lab
SKU: Rf Control Robot using RF Module (without Microcontroller)
Category: B.Tech Diploma Mini Projects
