Tesla Coil

A Tesla coil is a high-voltage, high-frequency transformer invented by Nikola Tesla in 1891. It is designed to produce high-voltage, low-current, high-frequency alternating-current electricity. Tesla coils are used in various applications, including wireless transmission of electricity, entertainment, and scientific research.

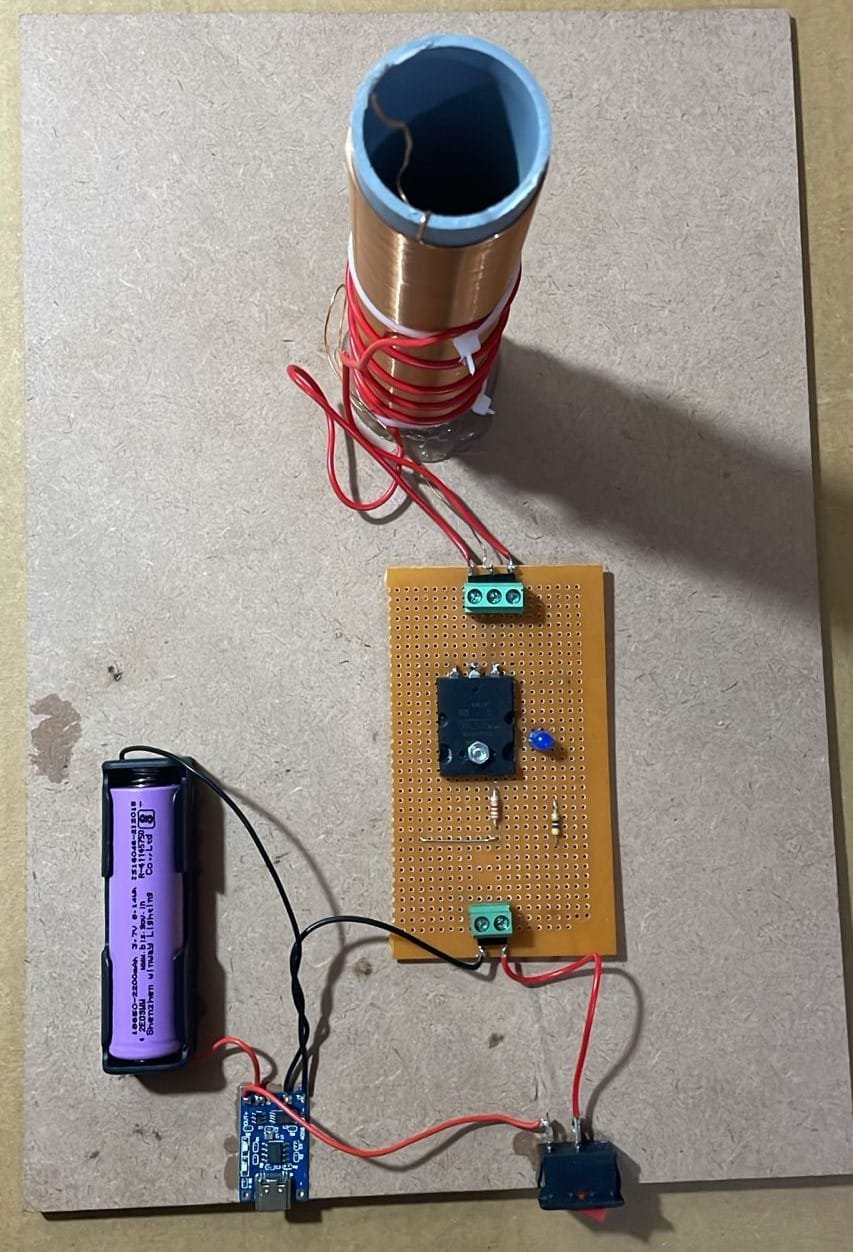

Components Used:

• Battery: Provides the initial power source for the circuit.
• Copper Wire Coil: Serves as the primary and secondary windings, where energy is stored and transferred.
• LED (Light Emitting Diode): Indicates the presence of voltage or current in the circuit, often used as a visual indicator.
• 2SC5200 Transistor: Acts as a switch to control the flow of current, enabling the oscillation necessary for the Tesla coil’s operation.

Working Principle:

The Tesla coil operates on the principle of resonance. The primary coil, connected to a power source, creates a magnetic field that induces a current in the secondary coil. This interaction transfers energy from the primary to the secondary coil, causing the secondary coil to oscillate at a high frequency. The 2SC5200 transistor controls the timing of these oscillations, while the LED provides a visual indication of the circuit’s operation. The copper wire coils are wound to specific dimensions to achieve resonance, allowing the coil to produce high-voltage outputs.

Applications:

• Wireless Power Transmission: Tesla coils have been explored for transmitting electrical energy without wires, potentially enabling wireless power for devices.
• Entertainment: They are used in light shows and musical performances, creating dramatic electrical arcs and sparks.
• Scientific Research: Tesla coils are utilized in laboratories for experiments involving high-voltage phenomena and electromagnetic fields.

Advantages:

• High Voltage Generation: Tesla coils can produce extremely high voltages, making them useful for various applications.
• Wireless Energy Transfer: They demonstrate the potential for transmitting energy without physical connections.
• Educational Tool: Tesla coils serve as effective demonstrations of electrical principles and high-voltage phenomena.

Limitations:

• Safety Hazards: The high voltages generated can be dangerous, posing risks such as electric shock and fire hazards.
• Complex Construction: Building a Tesla coil requires precise engineering and can be complex, especially when using components like the 2SC5200 transistor.
• Limited Practical Applications: While Tesla coils are fascinating, their practical applications are limited compared to other technologies.

Conclusion:

The Tesla coil is a remarkable invention that has contributed to the understanding of electrical engineering and wireless communication. While it offers impressive demonstrations of high-voltage phenomena and potential applications in wireless power transmission, practical use is limited due to safety concerns and technological advancements. Nonetheless, Tesla coils remain a significant part of scientific history and continue to inspire innovation in electrical engineering.
