Ultrasonic sensors paired with an STM32 microcontroller provide accurate distance measurements using echolocation. By emitting sound waves and calculating the time for the echo to return, the system determines distances efficiently. This setup is ideal for applications like robotics, parking assistance, and liquid level measurement.

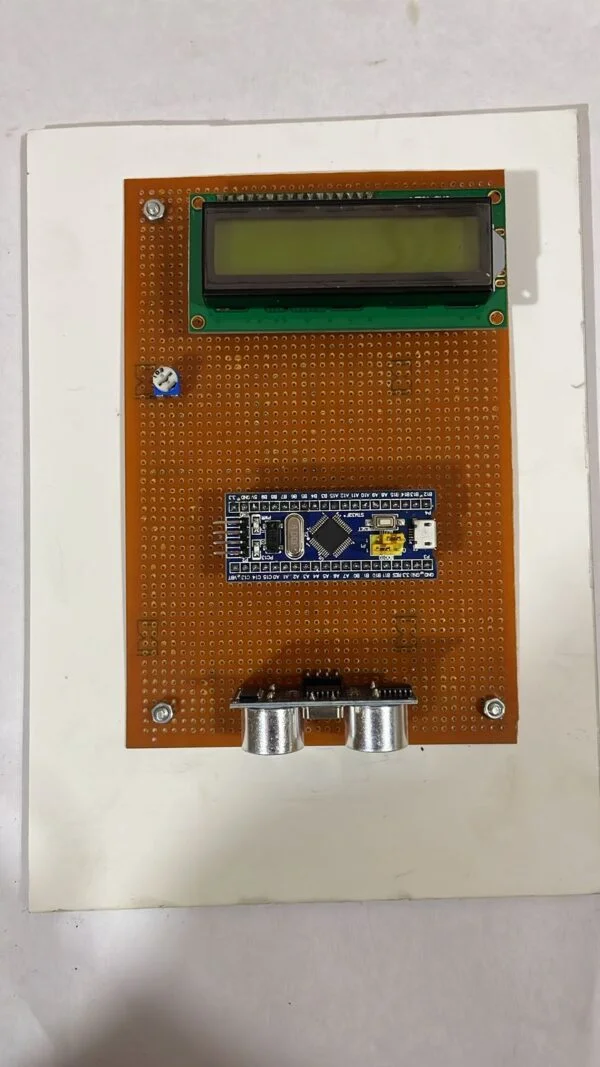

Distance Measurement using Ultrasonic Sensor and STM32
A distance measurement system using an ultrasonic sensor and an STM32 microcontroller is an effective and precise method to measure the distance between the sensor and an object. Here’s a comprehensive guide on how to implement such a system:
Components
Ultrasonic Sensor (HC-SR04): This sensor has four pins: VCC, GND, Trig (Trigger), and Echo. It emits ultrasonic waves and measures the time taken for the waves to bounce back from an object.
STM32 Microcontroller: The STM32 is used to process the data received from the ultrasonic sensor and calculate the distance.
Display (Optional): An LCD or OLED display can be used to show the measured distance.
Working Principle
The HC-SR04 sensor sends out an ultrasonic pulse when the Trig pin is triggered. It then measures the time it takes for the pulse to reflect back to the Echo pin. This time is used to calculate the distance to the object using the speed of sound.
System Design
Sensor Interfacing: Connect the VCC and GND pins of the HC-SR04 to the power supply. Connect the Trig pin to a digital output pin of the STM32, and the Echo pin to a digital input pin of the STM32.
Data Processing: The STM32 sends a high signal to the Trig pin to initiate the pulse. It then measures the duration of the high signal received on the Echo pin, which corresponds to the time taken for the pulse to travel to the object and back.
Distance Calculation: The distance is calculated using the formula: Distance (cm)=Time (µs)×Speed of Sound (cm/µs)2\text{Distance (cm)} = \frac{\text{Time (µs)} \times \text{Speed of Sound (cm/µs)}}{2}Distance (cm)=2Time (µs)×Speed of Sound (cm/µs) The speed of sound is approximately 0.034 cm/µs.
Implementation Steps
Circuit Setup: Connect the HC-SR04 sensor to the STM32 microcontroller as described.
Programming: Write a program to handle the triggering of the ultrasonic pulse and the measurement of the echo time.
Display: Optionally, add code to display the distance on an LCD or OLED screen.
