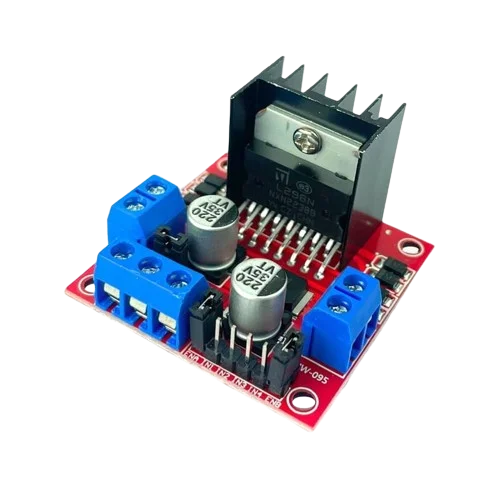

Motor Driver L298N: Efficient Dual H-Bridge Motor Controller

The Motor Driver L298N is a powerful and versatile module designed to control the speed and direction of DC motors and stepper motors with high efficiency and reliability. It is widely used in robotics, automation systems, and various DIY electronics projects, offering a robust solution for motor control.

Key Features

• Dual H-Bridge Configuration: The L298N driver comes equipped with two H-Bridge circuits, allowing it to control two DC motors independently or one stepper motor. This dual configuration makes it an ideal choice for projects that require precise motor control.
• High Voltage and Current Handling: The L298N is capable of driving motors with a supply voltage ranging from 5V to 35V and can handle a continuous current of up to 2A per channel, making it suitable for a wide range of motors.
• Built-in Protection: The module features built-in protection diodes to safeguard the circuit against voltage spikes that occur when motors are rapidly switched on or off. This ensures the longevity and stability of both the driver and the connected motors.
• PWM Control: The L298N driver supports Pulse Width Modulation (PWM), allowing for precise control of motor speed. By adjusting the duty cycle of the PWM signal, you can easily vary the motor’s speed without sacrificing torque.
• Compatible with Microcontrollers: The L298N is compatible with a variety of microcontrollers, including Arduino, Raspberry Pi, and other platforms, making it an excellent choice for hobbyists and professionals alike. It also features onboard 5V logic for easy interfacing with 3.3V or 5V microcontrollers.

Applications

The Motor Driver L298N is ideal for a wide range of applications, including:

• Robotics: Perfect for controlling the movement of wheeled robots, robotic arms, and other robotic systems.
• Automation Systems: Used in conveyor belts, automated doors, and other industrial automation projects.
• DIY Electronics: Ideal for hobbyists working on custom motor control solutions, such as motorized vehicles, drones, and other creative projects.

Conclusion

The Motor Driver L298N offers a reliable and efficient solution for controlling motors in various applications. With its robust features, compatibility with popular microcontrollers, and ease of use, it is an essential component for any electronics enthusiast or professional working on motor-driven projects.
